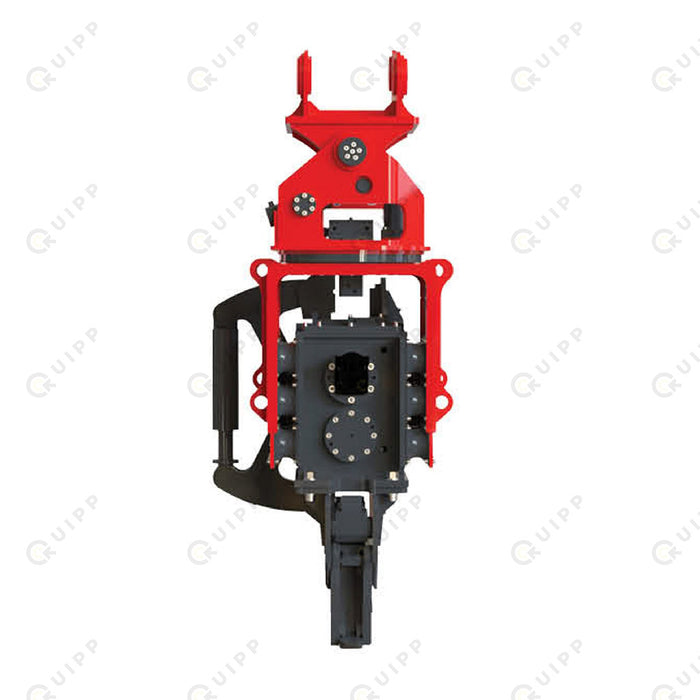

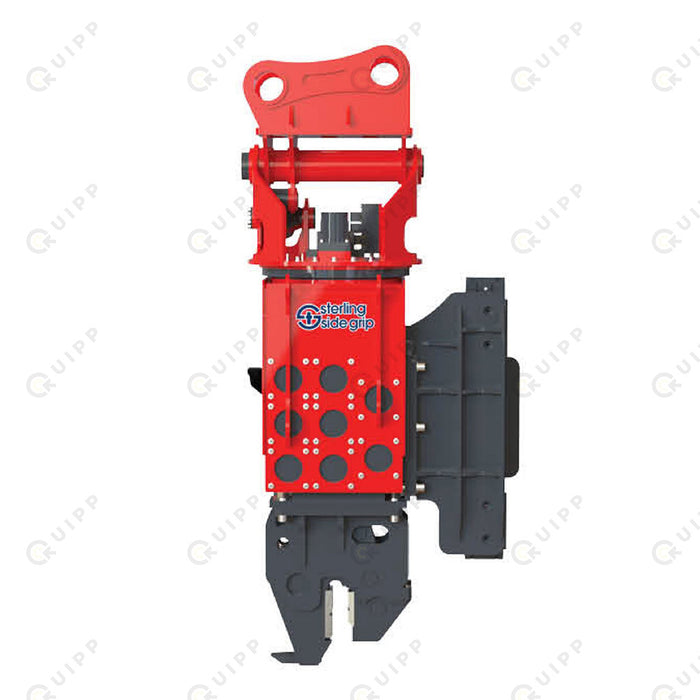

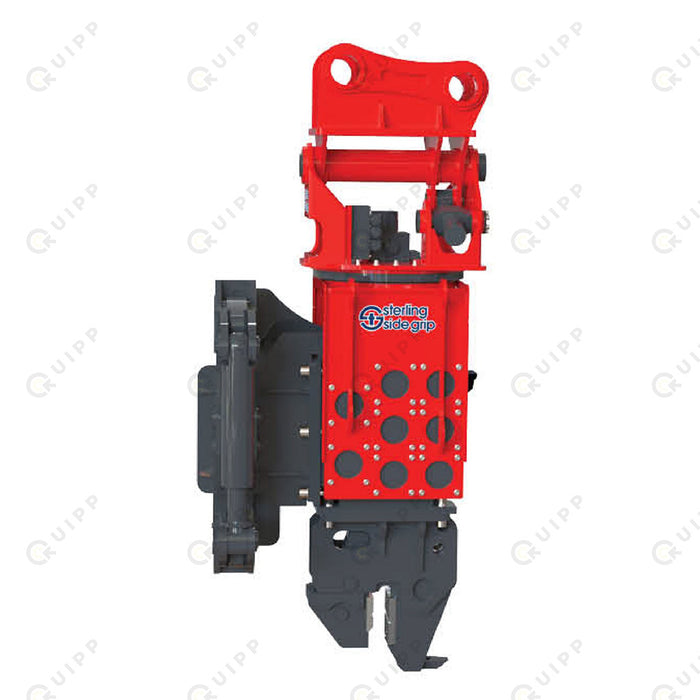

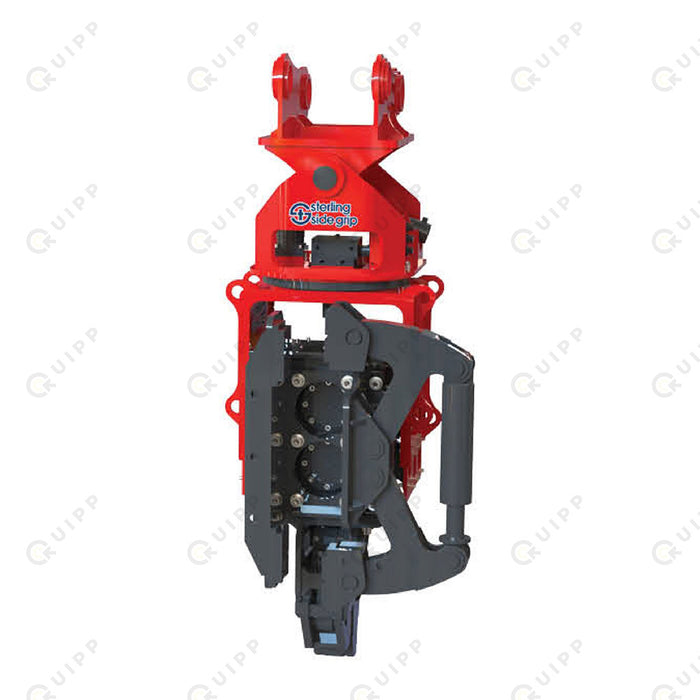

Sterling Hammer (Side Grip)

The Sterling Side Grip Hammer is a precise, side-clamping hammer that is used to sheet piles, H beams, I-H beams, and round piles into and out of the ground for the construction of structures such as bridges, harbors, roads, airports, and canal works.

Key Specifications (Depending on Model):
• Suitable Excavator range: 17-36 tons
• Operating Weight range: 2,620-2,800 kg
• Setting Pressure range: 250 bar (all models)
• Oil Flow range: 170-220 lpm

Key Features:
• Easy maintenance
• Rotational mounting
• Rigid & durability

Inclusions:
• Manufacturer's warranty of 1 year or 1,500 hours, whichever comes first.
• Auxiliary extension boom
• Drain line set & electric device for operator
• 2 Guard Hoses
• 1 Tool Box
• 1 Operator's Manual

Payment & Delivery: 100%/full payment prior to the release. Pick-up from C6 Yard, Taguig City. If requested to be delivered, a quote will be provided separately.

Original price ₱3,700,000.00 - Original price ₱4,100,000.00
Original price
₱3,700,000.00
₱3,700,000.00 - ₱4,100,000.00
Current price ₱3,700,000.00
Model: SG25W

TECHNICAL DATA

Brand
Sterling
Sterling
Model SG25W
SG30W
Suitable Excavator 17-26 tons 22-36 tons
Weight (w/ mounting cap)
2620 kg
2800 kg
Operating Pressure 250 bar
250 bar
Required Oil Flow 170-200 lpm
180-220 lpm
Centrifugal force
520 kN
610 kN
Eccentric Moment
3.7 kgm
4.3 kgm
Frequency 2800-3600 bpm 2800-3600 bpm
Rotation 360º 360º
Tilt Degree ±30 ±30
Side Clamp Open
255mm
255mm



 Downloads Sterling Quick Guide
Sterling Product Catalog
Sterling Selling Guide
