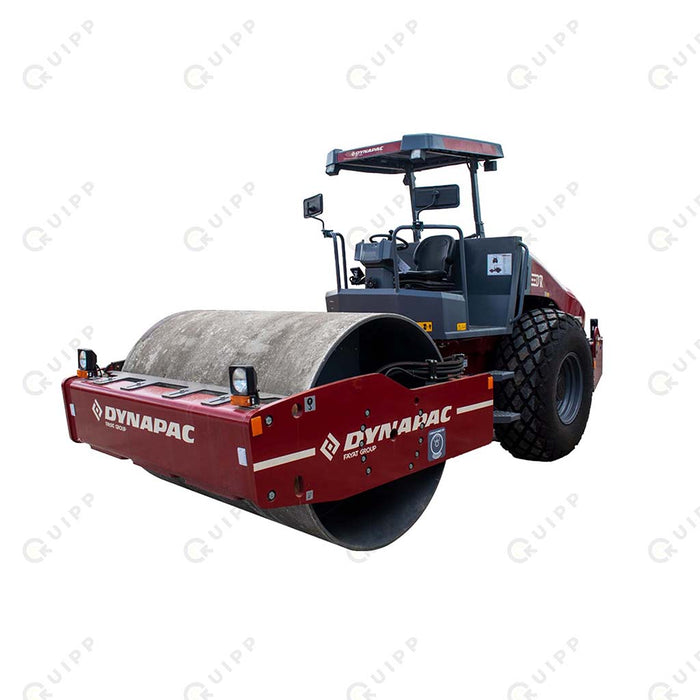

DRS120D Vibratory Soil Compactor (11.4 ton)

DRS120D Vibratory Soil Compactor (11.4 ton)

by DYNAPAC

Dynapac’s new 11.4-ton single drum vibratory compactor. Best for road construction, large land developments airfields, dam construction, harbour projects and industrial construction.

Key Specifications:
• Drum Width: 2,130mm
• Static Linear Load: 32 kg/cm
• Operating Weight: 11,400 kg

Key Features and Benefits:
• Dynapac Compaction Meter.
• Active Bounce Control.
• Folding Canopy
• Fuel Economy via Patented Efficiency Eccentric System with a Weight to Power Ratio (WPR)
144.3kg/kW

Inclusions:
• Manufacturer's warranty of one (1) year or 2,000 hours, whichever comes first.
• Operation, maintenance, and parts manuals along with a standard toolset.
• On-Site Training.

Payment & Delivery: 100%/full payment prior to the release. Pick-up from C6 Yard, Taguig City. If requested to be delivered, a quote will be provided separately.

₱4,100,000.00 - ₱5,000,000.00
₱4,100,000.00
₱4,100,000.00 - ₱5,000,000.00
₱4,100,000.00
Drum Type: Smooth

TECHNICAL DATA

Model DRS120D
Operating Weight 11400 kg
Front Module Weight 6800 kg
Static Linear Load 32 kg/cm
Drum Width 2130 mm
Gradeability 49%
Cabin Type Folding Canopy
Engine Type Dynapac Diesel Engine
Engine Power 79kW @ 2200 rpm
Download:
 View DRS120D Brochure
View DRS120D Data Sheet
View DRS120D Presentation
View More DRS120D Photos

    DISCOVER THE DYNAPAC DRS120D

    High Performance, Low Cost

    High Performance, Low Cost

    Patented Efficiency Eccentrics System

    DRS120D is optimized by moving the weight to the right side of the axle so that less weight counteracts the movement at start-up.

    • Substantial savings in energy and fuel

    • Mitigate the impact of the machine on the environment

    • Close to 11kW less power is required to initiate the vibratory action

    • Reducing energy consumption by 50% and thus using less fuel.

    • Economizing engine sizes and still offering the same power and compaction performance.

    EXPERIENCE REAL-TIME COMPACTION CONTROL

    EXPERIENCE REAL-TIME COMPACTION CONTROL

    The Dynapac Compaction Meter (DCM) is an accelerometer sensor, mounted on the drum module, continuously emits signals that are processed and presented as CMV (compaction meter value) on the instrument panel. The CMV shows the stiffness of the compacted material: the higher the CMV, the stiffer the material is. When the CMV stops increasing, the material is at maximum compaction.

    • No risk of over-compaction

    • Identify areas that need further compaction

    • Reduce overruns and optimize machine and operator work time

    • Reduce particle crushing

    • Maximize homogeneous compaction

    LEADING COMPACTION PERFORMANCE

    LEADING COMPACTION PERFORMANCE

    The Static Linear Load (SLL) is said to be the most important compaction parameter. Defined as the front module weight divided by the drum width. If the static linear load increases, the pressure in the material increases significantly.

    With a front module of 6800 kg and a drum width of 2130 mm, The DRS120D has a higher static linear load and front module weight than key competitors. We checked manufacturer and dealer data and this is what we came up with:

    • DYNAPAC DRS120D - SLL: 32 kg/cm - FRONT MODULE: 6800 kg

    • JCB 116D - SLL: 31.8 kg/cm - FRONT MODULE: 6680 kg

    • HAMM 311D - SLL: 30 kg/cm - FRONT MODULE: 6400 kg

    • VOLVO SD110 - SLL: 29.2 kg/cm - FRONT MODULE: 6240 kg

    • CATERPILLAR CS11GC - SLL: 28.4 kg/cm - FRONT MODULE: 5988 kg

    • SAKAI SV521D - SLL: 27.2 kg/cm - FRONT MODULE: 5800 kg

    • BOMAG BWD211D-40 - SLL: 27 kg/cm - FRONT MODULE: 5750 kg

    GET MORE WITH LESS POWER

    GET MORE WITH LESS POWER

    The DRS120D improves its Weight to Power Ratio (WPR) by 33%. The power to weight ratio is defined as the operating weight of the machine divided by the power of the engine. The higher the WPR score, the more efficient the machine.

    We checked data from manufacturers and dealer and this is what we came up with:

    • DYNAPAC DRS120D - WPR: 144.3 kg/kW - POWER: 79 kW

    • JCB 116D - WPR: 136 kg/kW - POWER: 85 kW

    • HAMM 311D - WPR: 151.6 kg/kW - POWER: 74 kW

    • VOLVO SD110 - WPR: 113.3 kg/kW - POWER: 99 kW

    • CATERPILLAR CS11GC - WPR: 130.2 kg/kW - POWER: 83 kW

    • SAKAI SV521D - WPR: 122.9 kg/kW - POWER: 83.3 kW

    • BOMAG BWD211D-40 - WPR: 98.9 kg/kW - POWER: 98 kW

    Improved Ergonomics

    Improved Ergonomics

    The DRS120D offers a Dual Speed traction system with a limited-slip axle. Depending on the speed and climb ability situations there will be a solution for everyone.

    The operator will enjoy using the DRS120D's redesigned panel because of its simplicity and easy-to-use design. The panel is organized to be compliant with ISO7000 Standards, featuring user-friendly selection modes with pictorial language to make it understandable. The different indicators and error messages are visual, so the user can easily identify what needs to be done.

    HASSLE FREE-TRANSPORTATION

    HASSLE FREE-TRANSPORTATION

    The ability to fold or remove the canopy makes the machine easier and safer to transport.

    It is a safe and convenient feature that gives the customer an edge in setting up the equipment quickly, saving time and cost.
